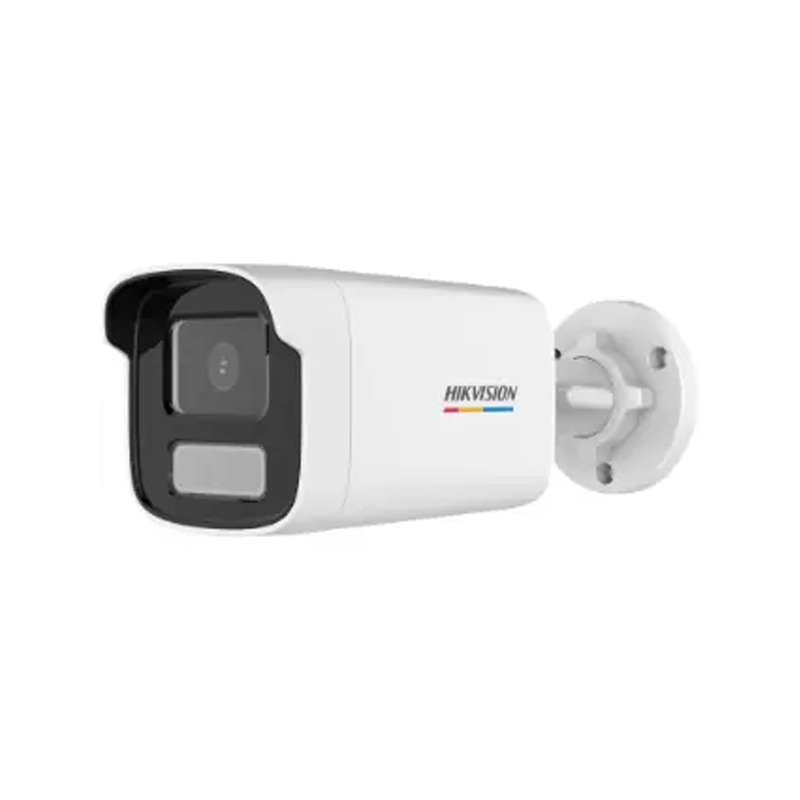

Camera

Image Sensor 1/2.8" Progressive Scan CMOS

Max. Resolution 1920 × 1080

Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time 1/3 s to 1/100,000 s

Day & Night 24/7 color imaging

Angle Adjustment Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 4 and 6 mm optional

Focal Length & FOV

• 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
• 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 63°

Lens Mount M12

Iris Type Fixed

Aperture F1.0

Depth Of Field

• 4 mm: 2.1 m to ∞
• 6 mm: 4.6 m to ∞

DORI

• 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
• 6 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator

Supplement Light Type White Light

Supplement Light Range Up to 50 m

Smart Supplement Light Yes

Video

Main Stream

• 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 8 Mbps

H.264 Type Baseline Profile,Main Profile,High Profile

H.265 Type Main Profile

Bit Rate Control CBR,VBR

Region Of Interest (ROI) 1 fixed region(s) for main stream

Audio

Audio Type -U: Mono sound

Environment Noise Filtering -U: Yes

Audio Sampling Rate -U: 8 kHz/16 kHz

Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Simultaneous Live View Up to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -U model supports)),ISAPI,SDK

User/Host Up to 32 users

3 user levels: administrator, operator, and user

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Client iVMS-4200,Hik-Connect

Web Browser

• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR) Digital WDR

SNR ≥ 52 dB

Day/Night Switch Day,Night,Auto,Schedule

Image Enhancement BLC,HLC,3D DNR

Image Settings

• Rotate mode,saturation,brightness,contrast,sharpness,gain,white

balance,adjustable by client software or web browser

Privacy Mask 4 programmable polygon privacy masks

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-In Microphone -U: Yes

Reset Key -F: Yes

Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General

Power

• 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material Front cover: metal, body: plastic, bracket: metal

Dimension 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")

Package Dimension 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")

Weight -L : Approx. 560 g (1.2 lb.), -LUF : Approx. 580 g (1.3 lb.)

With Package Weight -L: Approx. 615 g (1.4 lb.), -LUF: Approx. 635 g (1.4 lb.)

Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language English, Ukrainian

General Function Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

EMC

• FCC: 47 CFR Part 15, Subpart B,
• CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
• RCM: AS/NZS CISPR 32: 2015,
• KC: KN32: 2015, KN35: 2015

Safety

• UL: UL 62368-1,
• CB: IEC 62368-1: 2014+A11,
• CE-LVD: EN 62368-1: 2014/A11: 2017,
• BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

• CE-RoHS: 2011/65/EU,
• WEEE: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006

Protection IP67: IEC 60529-2013
