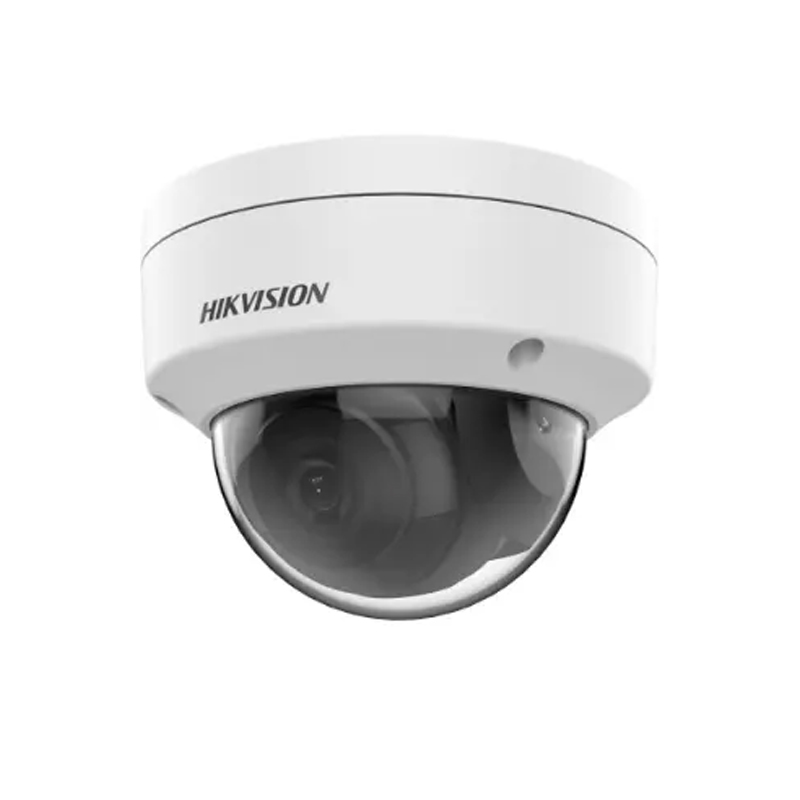

Hikvision 4 MP MD2.0 Fixed Dome Network Camera DS-2CD1143G2-I

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Efficient H.265+ compression technology
  • EXIR 2.0: advanced infrared technology with long IR range

Rs.  9,531


Hikvision 4 MP MD2.0 Fixed Dome Network Camera DS-2CD1143G2-I



The Hikvision 4 MP MD2.0 Fixed Dome Network Camera DS-2CD1143G2-I is a powerful surveillance solution renowned for its high-quality imaging capabilities. With a 4 MP resolution, it ensures that every detail is captured with exceptional clarity. The camera supports advanced features like human and vehicle detection, enabling intelligent analytics and precise monitoring for enhanced security. Built to withstand challenging environments, it boasts an IP67 rating, making it water and dust resistant, while its IK10 rating ensures resistance against vandalism. Even in situations with strong back lighting, the camera's 120 dB wide dynamic range (WDR) ensures clear imaging, effectively balancing light and dark areas. Additionally, the camera incorporates efficient H.265+ compression technology, optimizing bandwidth and storage requirements without compromising image quality. The inclusion of EXIR 2.0, an advanced infrared technology, provides a long IR range, enabling excellent night-time surveillance capabilities.

Features

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Efficient H.265+ compression technology
  • EXIR 2.0: advanced infrared technology with long IR range

Camera

  • Image Sensor 1/3" Progressive Scan CMOS
  • Max. Resolution 2560 × 1440
  • Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°

Lens

  • Lens Type Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV
  1. 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
  2. 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
  • Lens Mount M12
  • Iris Type Fixed
  • Aperture F2.0

DORI

  1. 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m
  2. 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

  • Supplement Light Type IR
  • Supplement Light Range Up to 30 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm

Video

Main Stream

  • 50 Hz:
  1. 20 fps (2560 × 1440)
  2. 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz:
  1. 20 fps (2560 × 1440)
  2. 24 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
  1. 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  2. 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Region Of Interest (ROI) 1 fixed region for main stream

Network

  • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
  • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • User/Host
  1. Up to 32 users
  2. 3 levels: administrator, operator, and user
  • Client iVMS-4200, Hik-Connect
  • Web Browser
  1. Plug-in required live view: IE 10, IE 11
  2. Local service: Chrome 57.0+, Firefox 52.0+


  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Day/Night Switch Day, Night, Auto, Schedule
  • Image Enhancement BLC, HLC, 3D DNR
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask 4 programmable polygon privacy masks

Interface

  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Linkage Upload to FTP, send email, notify surveillance center, trigger capture
  • General
  • Power
  1. 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
  2. PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Material Metal & Plastic
  • Dimension Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3")
  • Package Dimension 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Weight Approx. 520 g (1.1 lb.)
  • With Package Weight Approx. 720 g (1.6 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
