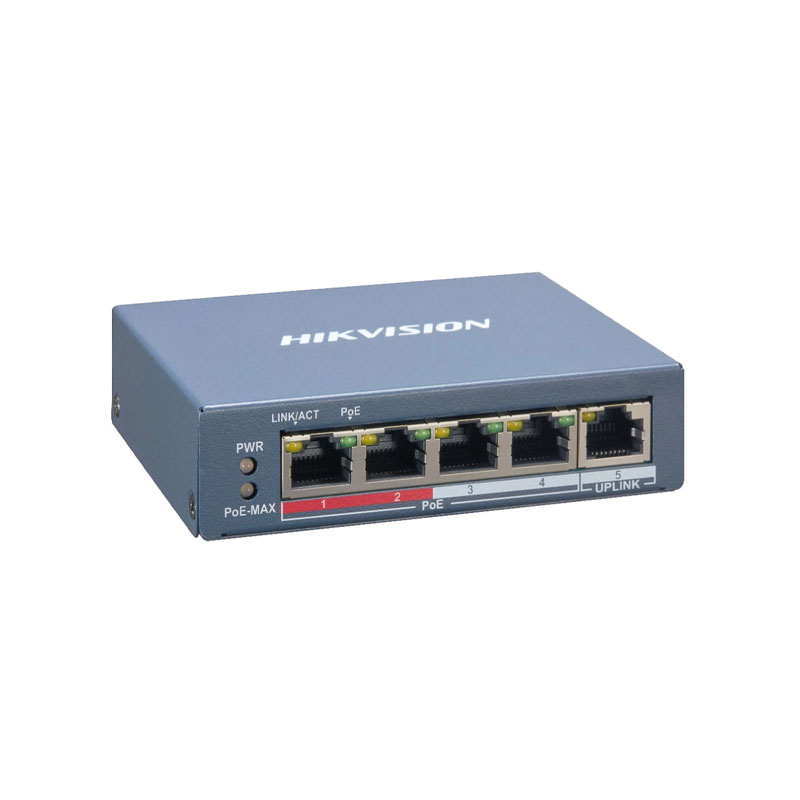

Hikvision 4 Port Fast Ethernet Smart POE Switch DS-3E1105P-EI

4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
6 KV surge protection for PoE ports.
Total PoE Power Budget 60W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission

Rs. 5,024

Hikvision 4 Port Fast Ethernet Smart POE Switch DS-3E1105P-EI

Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.

Network Parameters

Ports4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
MAC Address Table2 K
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps
Internal Cache1 Mbits

PoE Power Supply

PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power PinEnd-span: 1/2(-), 3/6(+)
PoE PortPoE: Ports 1 to 4
Max. Port Power30 W
PoE Power Budget60 W

Software Function

Long Range - Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
VIP PortPorts - 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Port Isolation - Ports 1 to 4: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog - Ports 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation - Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 1 aggregation groups.
QoS/
Loop Prevention - Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
Port Rate-Limiting/
Storm Control/
IGMP Snooping/
DHCP Snooping/
ACL/
IPSG/
