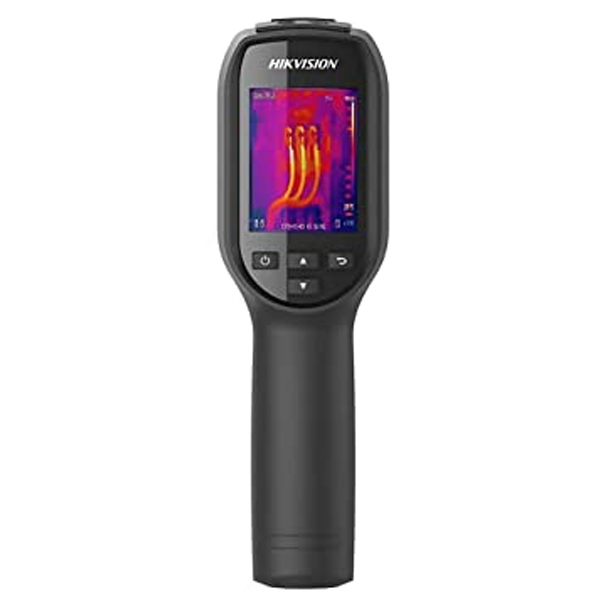

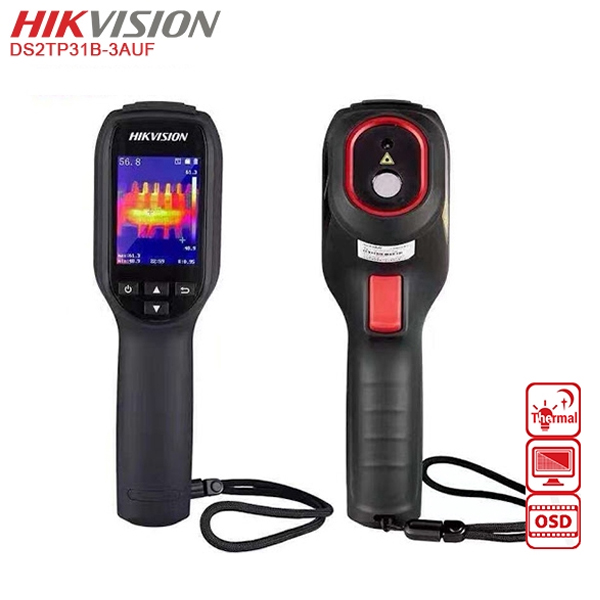

Hikvision Handheld Thermography Camera DS -2TP31-3AUF
The handheld thermography camera, specially designed for temperature measurement in transformer substation. It’s equipped with a 160× 120 resolution thermal detector. It helps the staff to quickly find the fault according to accurate temperature measurement of high-temperature targets in the environment. Meanwhile, it provides assistant decision and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, and the auto industry, etc., Key Features
- 160 × 120 resolution
- 320 × 240 resolution 2.4 ’’ LCD display
- Built-in rechargeable Li-ion battery
- Up to 8 hours continuous running
- Thermometry D :S = 75:1, a circular target with a diameter of 1 cm can be measured accurately within
- a distance of 75 cm.
| Thermal Module | |
|
Image sensor |
Uncooled Focal Plane Arrays |
|
Max. Resolution |
160 × 120 |
|
Pixel Pitch |
17μm |
|
Response waveband |
8μm to 14μm |
|
NETD |
< 4 0mK (@ 25 °C,F#=1.0) |
| Field of View |
37.2 ° × 50 ° |
| Focal length |
3.1 mm |
| IFOV (mrad) |
5.48 mrad |
|
M in. Focus Length |
≥ 150 mm |
| Aperture | F 1.1 |
| Image Display | |
| Monitor |
320 × 240 resolution 2.4 ’’ LCD display |
| Palette |
Black hot, White hot, Rainbow, Ironbow |
| Thermography | |
| Rules | 3 thermometry points: Max.Temperature; Min.Temperature; Center Temperature |
| Thermometry Range | - 20 °C to 5 50 °C (B20- 4 °F to 1022 °F) |
|
Thermometry Accuracy |
Max ( ±2 °C , ±2%) |
|
Thermometry Distance |
D :S = 75:1 |
| Battery | |
|
Battery Type |
Rechargeable Lithium Battery |
|
Battery Operating Time |
8 hours continuous running |
|
Functions |
|
| Laser Light | Support (Point to the thermography target) |
| Storage | Replaceable memory card (default 8 G , support up to 128G storage |
| Photo | Thermal image |
| Video | N.A. |
| Language | English |
| General | |
| Power | 3.7 V DC/0.4 A |
| Power Consumption | Less than 1.2 |
| Hardware Interface | micro USB |
| Working Temperature | - 10 °C to 50 °C (14 °F to 122 °F) |
| Protection level | IP54 |
| Drop Test Height | 2 m (6.56 feet) |
| Dimension |
196 mm × 117 mm × 59 mm (7.7 ′′ × 4.6 ′′ × 2.3 |
| Weight |
Approx. less than 350 g (0.77 lb_ |
| Accessory | Power Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap |
