EZVIZ H90 Dual 4MP 4MP 2K+ Outdoor Camera | CS-H90-R100-8H44WKFL


  • Dual 2K+ Cameras
  • Panoramic View
  • AI Human & Vehicle Detection
  • Auto Tracking
  • Color Night Vision
  • Two-Way Talk
  • Wide Area Coverage
  • H.265 Video Compression
  • Weatherproof Design
  • 1 Year Warranty

Rs.  15,641


Dual cameras, dual rotations

Another innovation in the EZVIZ star range of dual-lens cameras, the H90 Dual is taking 360-degree protection to a whole new level by combining two rotating lenses in a single housing. Its orb-shaped camera inherits the beloved features from EZVIZ’s pan/tilt series, and its UFO-shaped top camera adds another sweeping, ultra-wide field of view to leave no corner unwatched. The two boast additional smartness by responding to each other to complete interlinked detection and view change. In short, the H90 Dual provides unparalleled vision and efficiency for large-area monitoring.

Smart robotic power doubled in one

Equipped with the EZVIZ’s dual-lens technology, the H90 Dual unprecedentedly uses three motors to ensure both cameras can smoothly swirl to reduce blind spots as much as possible. This two-camera system can secure two separate, wide areas simultaneously, or record the same activity with far more details.

  • Triple Motors to Change Scenes Easily
  • Flexible Rotations to Fit Various Installation Conditions

Big and small, all truthfully captured in 2K+ resolution

Let the H90 Dual enhance your sight to see both far and nearby, so you don’t skip anything important. You can adjust the upper lens to keep a continuous watch on the big picture of a key area, and use the lower lens to secure what matters to you most.

Click to check, with both wide and close-up views

Understand the whole, big picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view will be shown on the side at the same time.

Co-action technology ready for a complex activity

Unlike most dual-lens cameras in the market that only stitch the views of two lenses, the H90 Dual is smart enough to complete a complicated detection activity by involving two lenses at the same time.

Fully-automated rotation for extended peace of mind

On set time intervals, the lower lens can complete rotational check-ups to eliminate blind spots. You can customize patrol routes for tailored focuses, or simply ask it to complete a full-circle spin.

Smarter alerts on the comes and goes

In addition to capturing human activities with a wealth of information, the H90 Dual recognizes the shape of a car from other moving objects. If your family member pulls up in front of your driveway or someone parks in your detected area, you will be notified immediately.

Communications can be this easy

Enjoy two-way audio by simply using your smartphone. Or, pre-record a 10-second voice message that automatically plays upon human motion detection.

A vigilant guard who works around the clock

The H90 Dual integrates EZVIZ’s beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights to warn them away.

Smart adaptation for even and clear images

Wherever you install the H90 Dual camera, it manages to comprehend the surrounding light to automatically create an evenly exposed, clear image, even in the dark. Users can choose to enable the "Balanced Image Exposure" option via the EZVIZ App at any time, regardless of which night vision mode the camera is in.

A durable design with versatile setups

Designed to satisfy security demands under various scenarios, the H90 Dual can easily find its best location to deliver steady, reliable performance even in rain or snow.

  • Easy Installation with Flexible Mounting Accessories
  • Weatherproof Design
Specifications
Model CS-H90-R100-8H44WKFL
Camera
Image Sensor 1/3" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°
Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
PT Angle Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle )
Bottom Lens: Pan: 324°, Tilt: 90°
Minimum Illumination 0.5 Lux @(F1.6, AGC ON),
0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount M12
Day & Night IR-cut filter with auto switch
DNR 3D DNR
WDR Digital WDR
IR Night Vision 30 m (98 ft)
Color Night Vision Up to 40 m (131 ft) when two lenses point in the same direction
Video & Audio
Max Resolution 2K+ (2560 × 1440)
Frame Rate Self-adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Quad HD; Full HD; Standard adaptive bit rate
Audio Bit Rate Self-Adaptive
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security WPA-PSK/WPA2-PSK
Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing AP paring
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm AI-powered human shape detection
AI-powered vehicle shape detection
Motion detection
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
Preset Locations Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage Supports microSD card (max. 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (subscription required)
General
Operating Conditions -30°C to 50°C ( -22 °F to 122 °F )
Humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply IP65 + 2h rainstorm
Power Consumption MAX. 18W

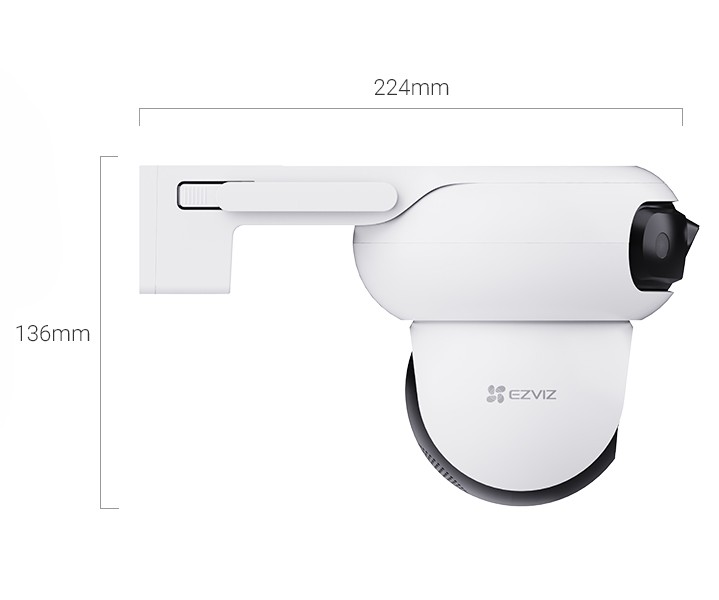

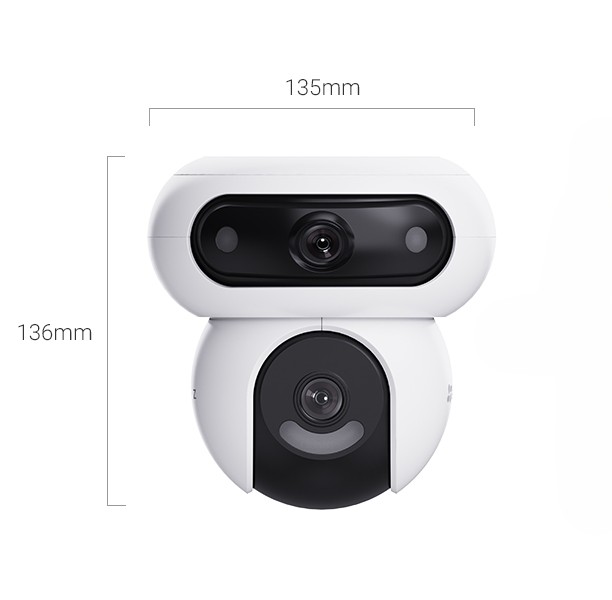

Dimensions 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch)
Packaging Dimensions 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch)
Weight Net weight: 723 g (25.51 oz)
With Package: 1203 g (42.43 oz)
In the box
In the box - H90 Dual 2K+ Camera
- Power Adapter
- Drill Template
- Waterproof Kit
- Screw Kit
- Regulatory Information × 2
- Quick Start Guide
Warranty 1 Year
