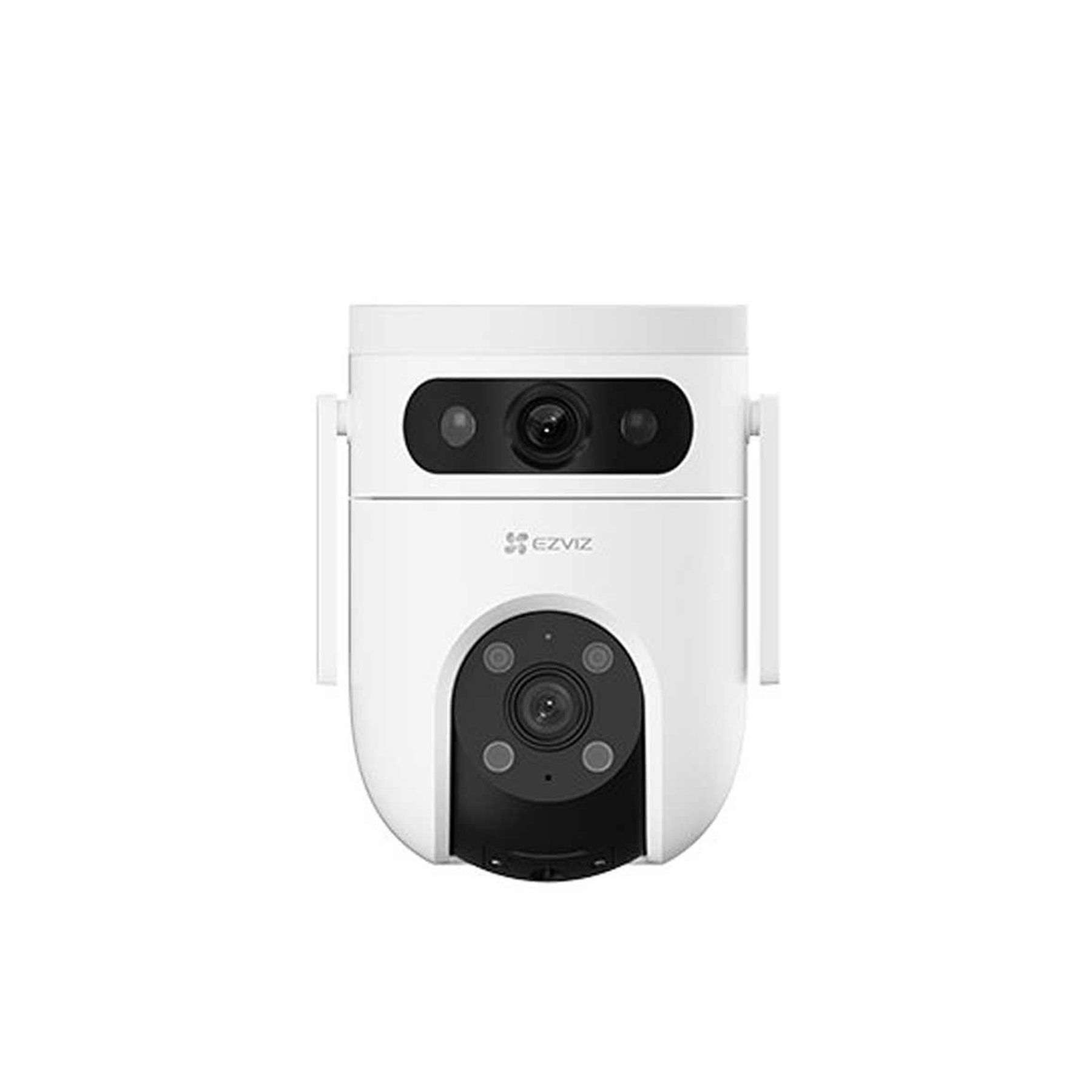

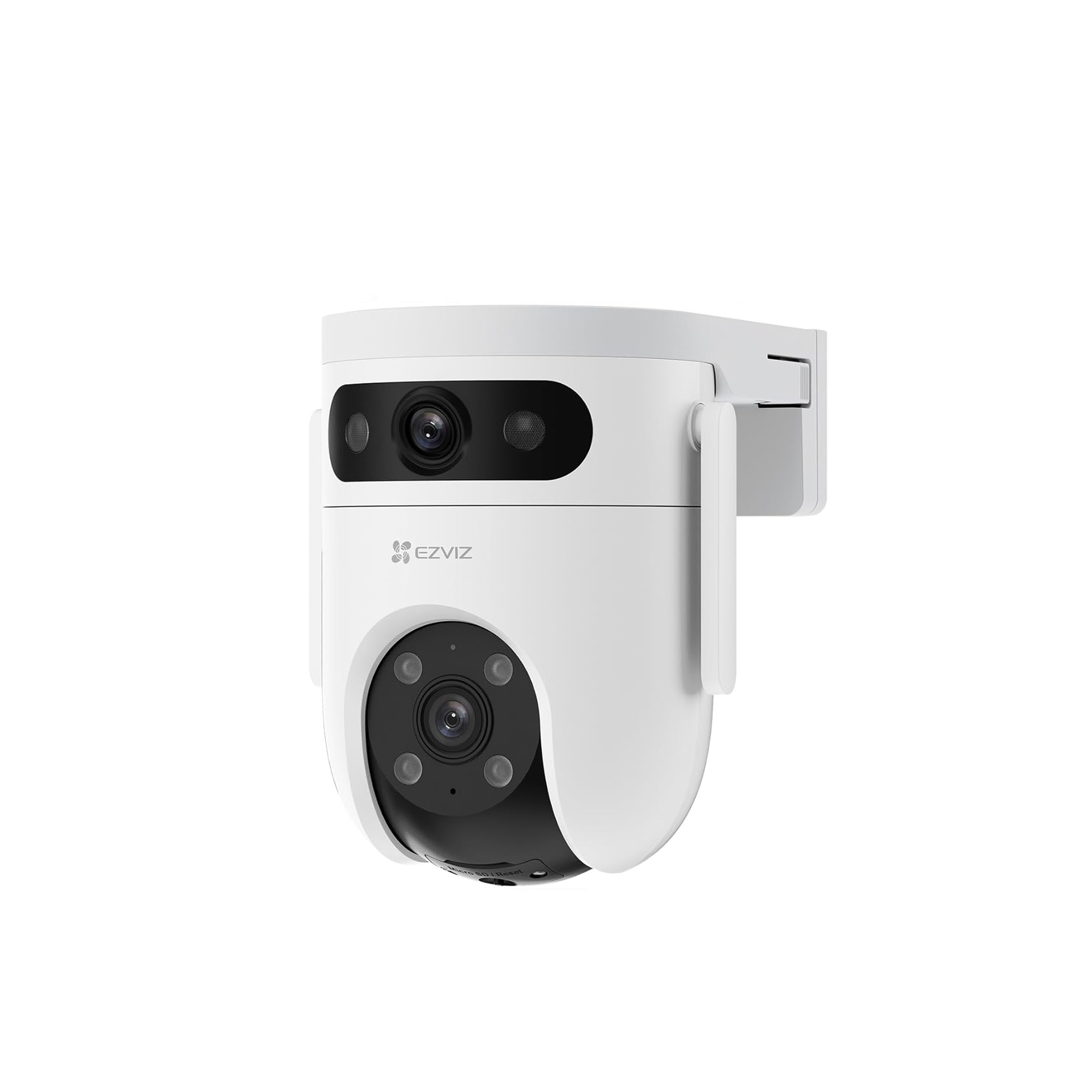

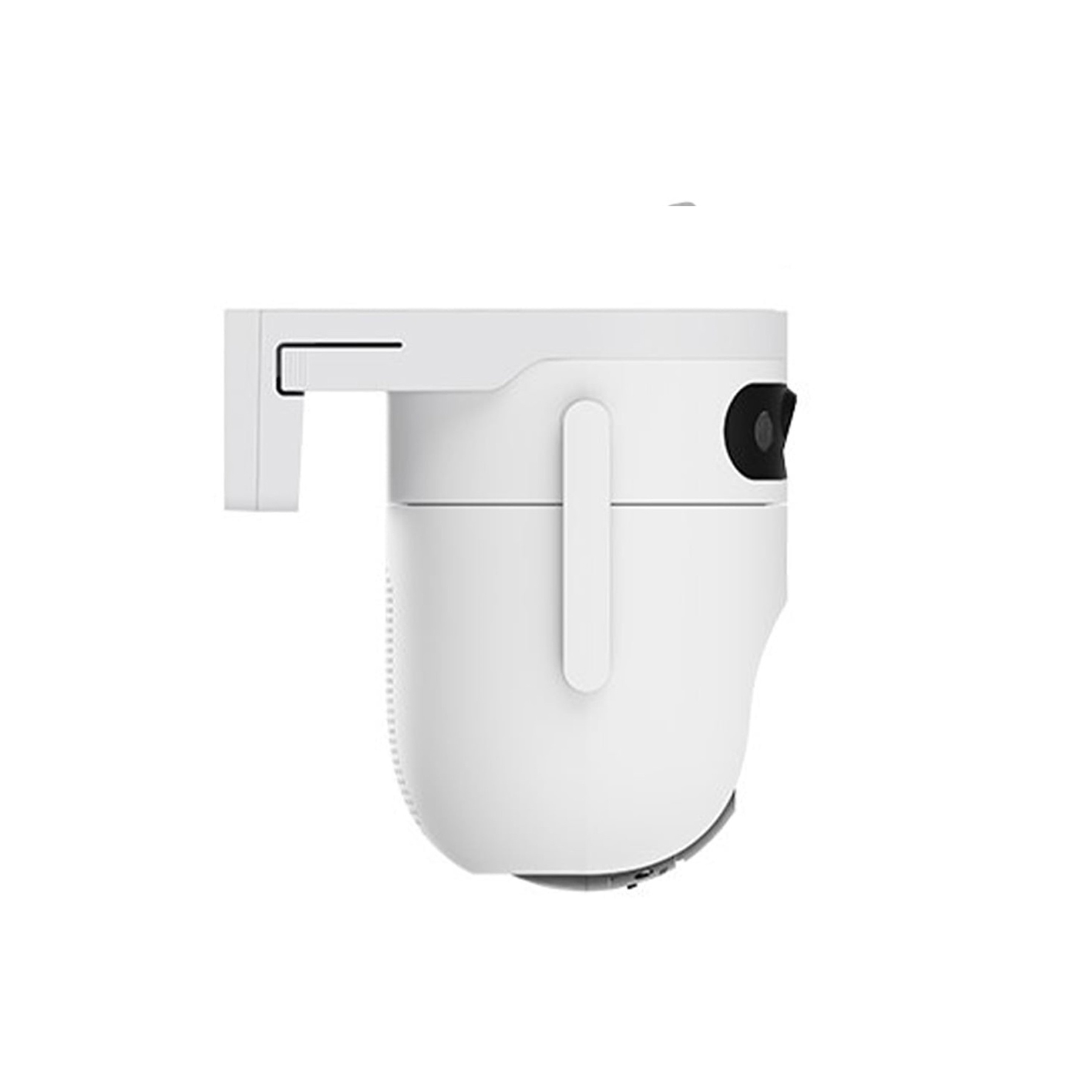

EZVIZ H9c 2K Dual-Lens Pan & Tilt Wi-Fi Camera CS-H9c-R100-8H33WKFL


  • 2K & 2K Dual Lenses
  • Co-Detection for Auto Smart Tracking
  • One-Tap Control for Linked View Change
  • Two Patrol Modes for Auto-Security
  • AI-Powered Human / Vehicle Shape Detection
  • 360° Panoramic Coverage
  • Color Night Vision
  • Two-Way Talk
  • Active Defense with Siren and Strobe Light²

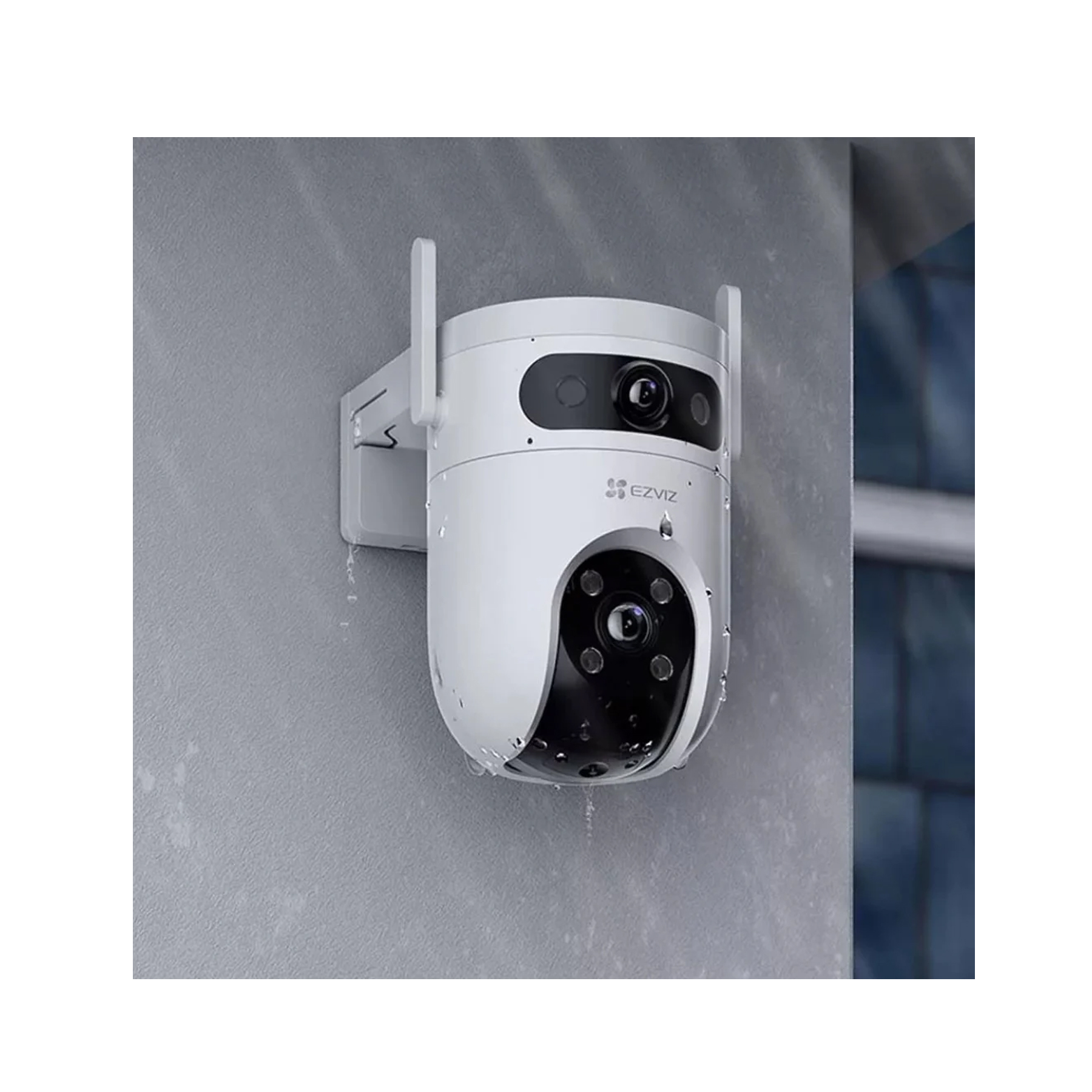

  • Weatherproof Design
  • Enhanced Dual Wi-Fi Antennas
  • H.265 Video Technology³
  • Smart Integration with Google Assistant & Amazon Alexa
  • Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage

Rs.  12,665


EZVIZ H9c 2K Dual-Lens Pan & Tilt Wi-Fi Camera CS-H9c-R100-8H33WKFL

Automated. All-round. Almighty.

The new addition to EZVIZ’s highly acclaimed PT Series, the dual-lens H9c 2K demonstrates the future of security automation with multiple unique technologies. Its two cameras work interactively to protect larger areas with minimal manpower, achieving results comparable to a multi-camera system. It alerts to important events, follows ongoing activities, and patrols key locations from time to time – all automatically.

Dual lenses. Double security.

With EZVIZ’s unique dual-lens technology, the H9c provides unparalleled protection that’s beyond professional. It uses a wide-angle lens on top of a telephoto pan-and-tilt lens – the duo works independently or together in a way that is much smarter than your ordinary camera.

  • 2K Wide-angle Lens - Manually-adjustable 240° Horizontal Rotation 15° Tilting for Glare-free Viewing
  • 2K Telephoto Lens - Motorized Pan & Tilt for 360° View

Next-level detection, unparalleled protection

The H9c is equipped with dual-lens, co-enabled detection technology to safeguard even the most complex environments in a way that is tailored to your needs. You can use these advanced features at any time without committing to a subscription plan.


AI-Powered Human / Vehicle Shape Detection (Available on Both Lenses)


PT Lens Auto-Tracking (On Human Movements)


Co-Detection for Interlinked Lens Auto-Actions


Adjustable Detection Sensitivity

No Subscription Required

Face two directions, but follow the same activity

Even if the two lenses are set on opposite viewing angles to secure two different areas, they can complete a single smart tracking task through teamwork. When a human is detected by the upper lens, the PT lens will automatically rotate to such angle to lock on the person and record the whole activity.

Step 1 - The top lens detects a moving person in its ultra-wide 130° view

Step 2 - The bottom lens rotates and follows the moving person

Smarter alerts with upgraded vehicle detection

It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

See much more than you can imagine

A bigger space needs a wider view. That’s where the H9c 2K comes in handy. It can pan and tilt to take in a 360-degree field-of-view, and render details in 2K resolution to capture crucial moments clearly.

Click to check, with both wide and close-up views

Understand the whole, big picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view will be shown on the side at the same time.

Or, let the H9c 2K patrol smartly, so you don’t have to

On set time intervals, the lower lens can complete rotational check-ups to eliminate blind spots. You can customize patrol routes for tailored focuses, or simply ask it to complete a full-circle spin.

Specifications
Model CS-H9c-R100-8H33WKFL
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: [email protected], viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
PT Angle Pan: 350°, Tilt: 80°
Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Black & White Night 30m / 98ft
Video & Audio
Max Resolution 2304 × 1296
Frame Rate Max:15fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing AP paring
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security WPA-PSK/WPA2-PSK
Functions
Smart Alarm AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
Preset Locations Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage Supports microSD Card (Up to 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage
General
Operating Conditions -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V/1.5A
Power Consumption MAX. 12W
Dimensions 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
Packaging Dimensions 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
Weight

Net Weight: 668 g

With Package: 960 g

In the box
In the box - H9c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
Certifications CE / WEEE / RoHS / REACH
