PeopleLink Speaker Track Camera

Key Features

1/2.8” CMOS, 2MP
12x optical zoom, up to 72.5° FoV
Simultaneously output 3G-SDI, HDMI, USB2.0, Ethernet, up to 1080P 60 resolution
Support H.264/H.265 video compression
Implemented with both audio positioning, body detection, and recognition technologies, it can precisely frame the speakers. Support AEC
Automatically switch between the close-up image for speaker(s) and the wide-angle image for all attendees
Built-in image switch rules according to actual meeting scenarios.

Rs. 270,000

PeopleLink Speaker TrackCamera

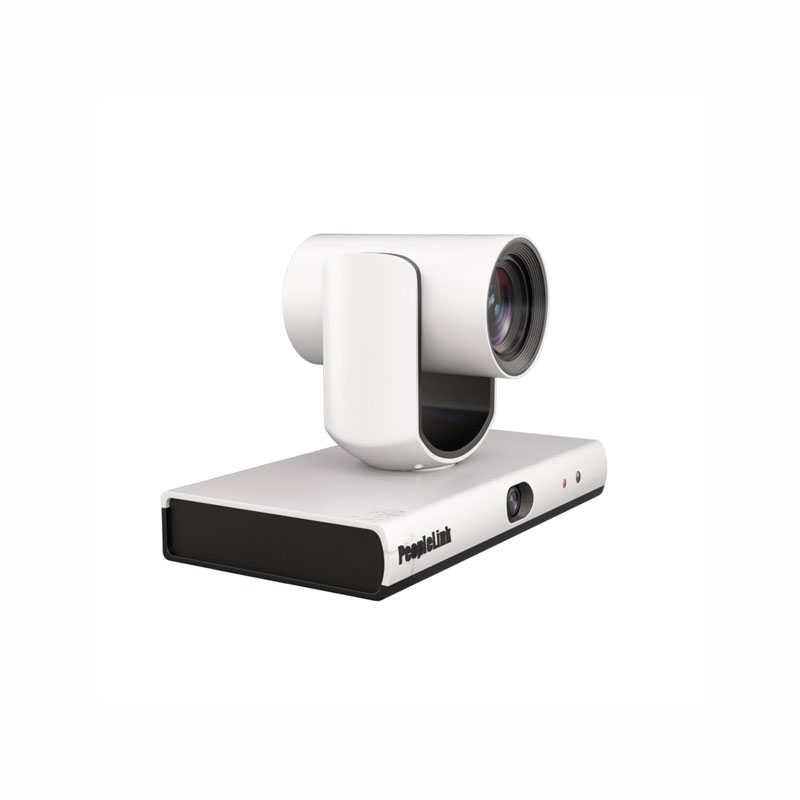

PeopleLink Speaker Track camera helps to achieve an intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up and full-view images to frame the speaker(s). It frees camera operation during a meeting and enables meeting attendees to focus more on the discussion.

Tracking Camera
Image Sensor	1/2.8”CMOS, 2MP
Signal Format(SDI)	1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50
Focal	f=3.9mm-46.8mm
Iris	F1.6-F2.8
Optical Zoom	12x
Digital Zoom	12x
Field of View	72.5°-6.3°
Focus	Auto, Manual, PTZ Push, One Push
Min. Illumination	0.5Lux (Colour)，0.1Lux (B/W)
Shutter Speed	1/25-1/10,000s
AGC	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One Push Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris Priority
S/N	≥50dB
DNR	2D/3D
BLC	Support
Full-View Camera
Image Sensor	1/2.5'' 4K CMOS, 8.57MP, 2.8mm
Lens	Prime lens, 4X Digital Zoom
Field Of View	98°
Video adjustments	Support EPTZ
PTZ
Pan Range	90°~+90°
Tilt Range	.-30°~+90°
Pan Speed	0.1°~120°/ s
Tilt Speed	0.1°~80°/s
Preset Number	64
Network
Max. Image Size	1920×1080 @60 fps
Video Compression	H.265,H.264
Audio Compression	AAC
Protocol	HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream	Support 1 Tracking, 1 Full-View, 1 Switching, three streams in total
Interface
Video Output	1×HDMI Interface,1×3G-SDI Interface， 2×LINE IN, including one channel with EC
Audio Input	2×LINE IN, including one channel with EC
Audio Output	1×LINE OUT
Network Interface	1×10M/100M
USB Interface	1×USB2.0, Support UVC/ UAC
Control Interface	1×RS-232
General
Control Protocol	VISCA
Address	1~6
Power Supply	DC12V
Power Consumption	<20W
Working Temp	0°C ~ + 40°C
Storage Temp	.-20°C ~ +60°C
Dimension (L×W×H)	245 mm x 145mm x 165mm
Weight	<2kg
Tracking Camera
Image Sensor	1/2.8”CMOS, 2MP
Signal Format(SDI)	1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50
Focal	f=3.9mm-46.8mm
Iris	F1.6-F2.8
Optical Zoom	12x
Digital Zoom	12x
Field of View	72.5°-6.3°
Focus	Auto, Manual, PTZ Push, One Push
Min. Illumination	0.5Lux (Colour)，0.1Lux (B/W)
Shutter Speed	1/25-1/10,000s
AGC	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One Push Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris Priority
S/N	≥50dB
DNR	2D/3D
BLC	Support
Full-View Camera
Image Sensor	1/2.5'' 4K CMOS, 8.57MP, 2.8mm
Lens	Prime lens, 4X Digital Zoom
Field Of View	98°
Video adjustments	Support EPTZ
PTZ
Pan Range	90°~+90°
Tilt Range	.-30°~+90°
Pan Speed	0.1°~120°/ s
Tilt Speed	0.1°~80°/s
Preset Number	64
Network
Max. Image Size	1920×1080 @60 fps
Video Compression	H.265,H.264
Audio Compression	AAC
Protocol	HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream	Support 1 Tracking, 1 Full-View, 1 Switching, three streams in total
Interface
Video Output	1×HDMI Interface,1×3G-SDI Interface， 2×LINE IN, including one channel with EC
Audio Input	2×LINE IN, including one channel with EC
Audio Output	1×LINE OUT
Network Interface	1×10M/100M
USB Interface	1×USB2.0, Support UVC/ UAC
Control Interface	1×RS-232
General
Control Protocol	VISCA
Address	1~6
Power Supply	DC12V
Power Consumption	<20W
Working Temp	0°C ~ + 40°C
Storage Temp	.-20°C ~ +60°C
Dimension (L×W×H)	245 mm x 145mm x 165mm
Weight	<2kg
