Ruijie RG-RAP62, Wi-Fi 6 AX1800 Ceiling-Mount Access Point

Rs. 22,550

Redefine Your Business Wi-Fi 6 Network

AX1800 Wi-Fi 6 Ceiling Mount Access Point

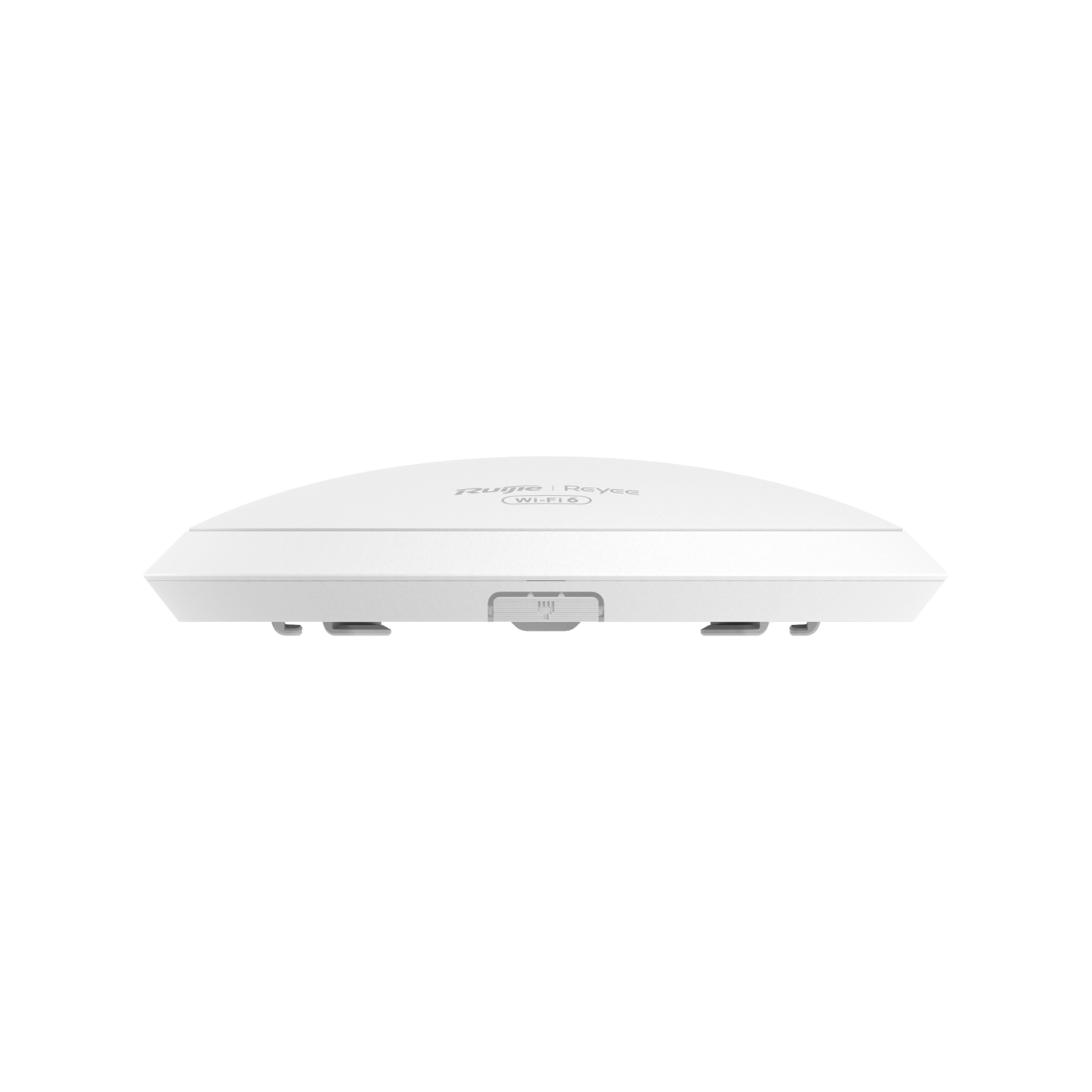

Incredibly Thin and Small

Elegant design brings more agility

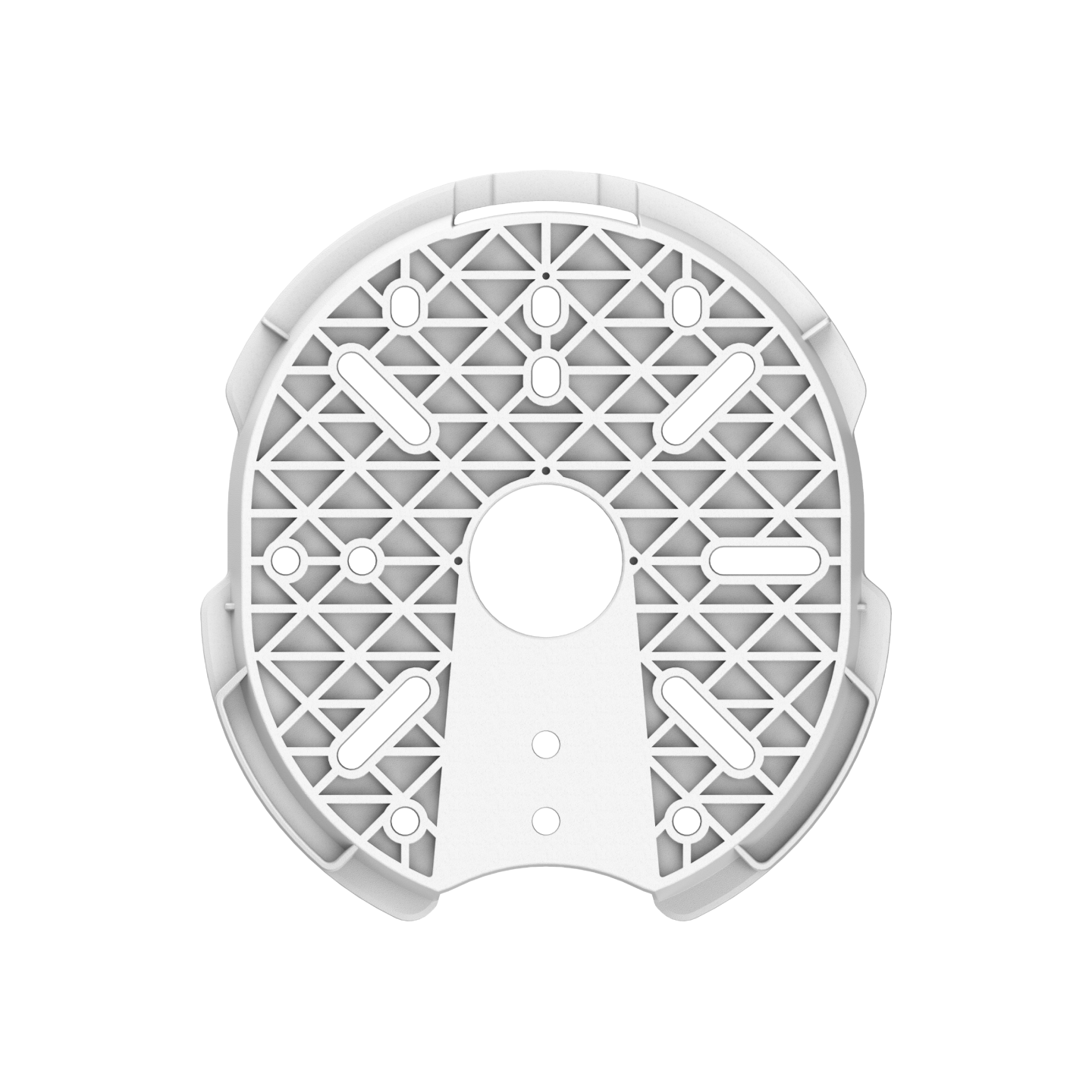

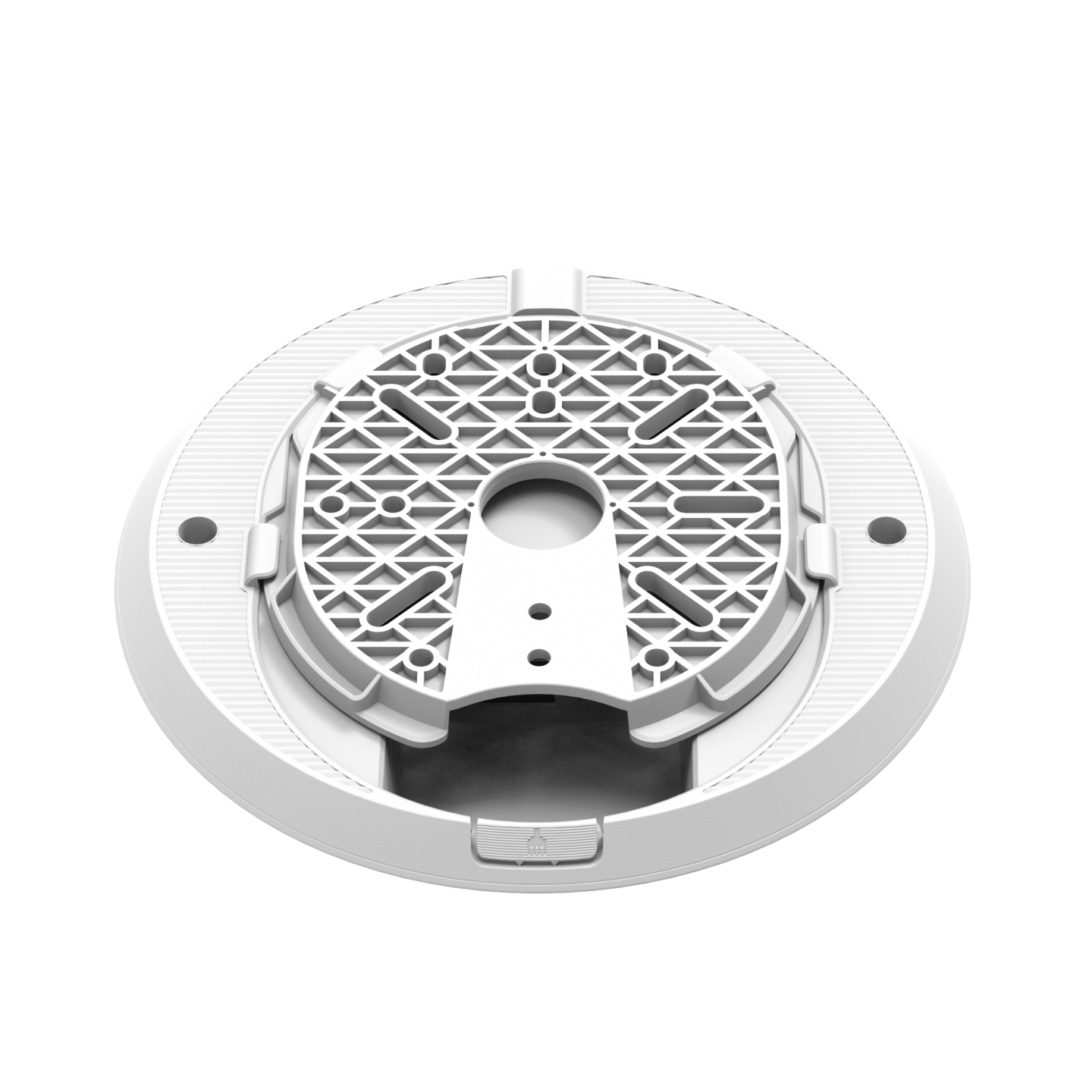

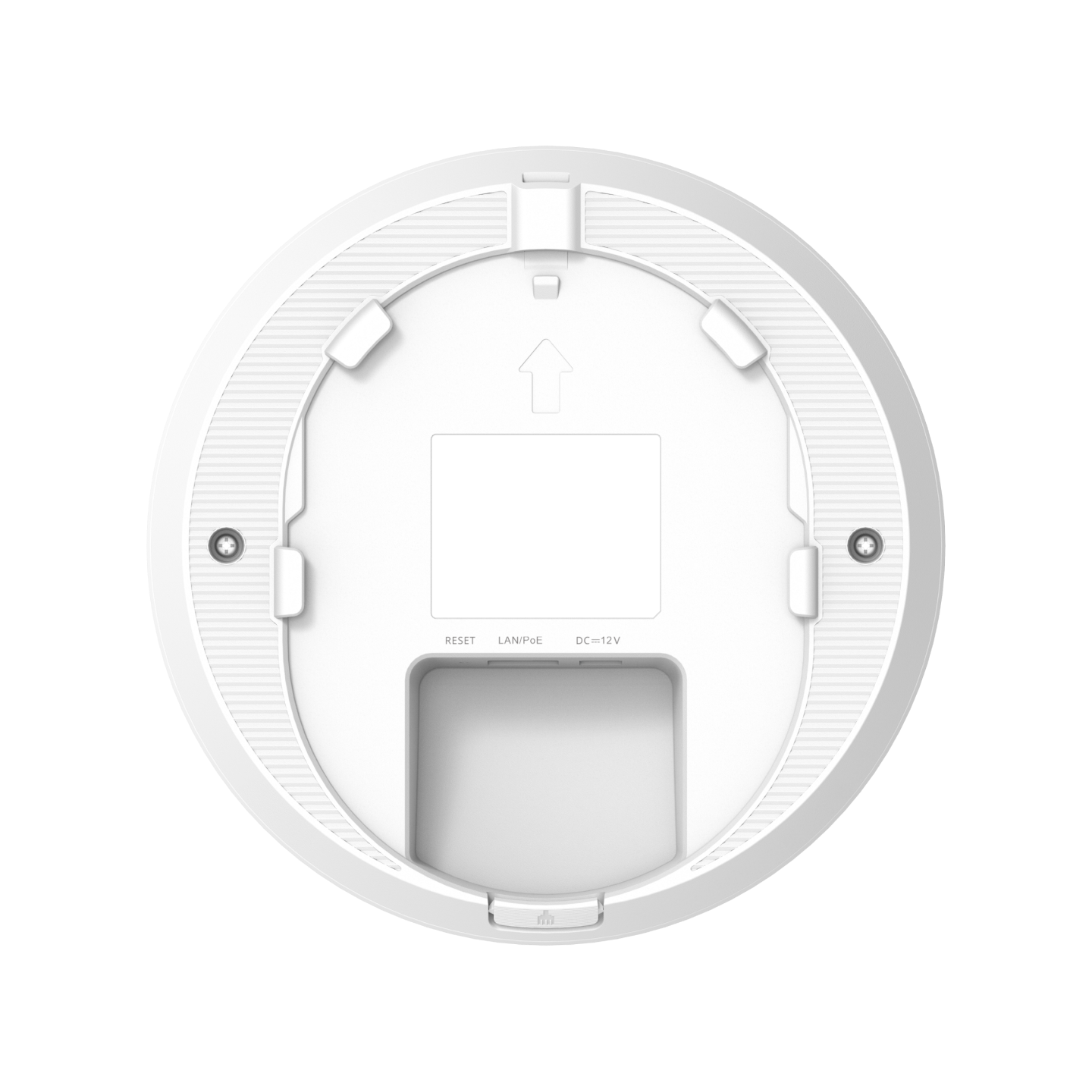

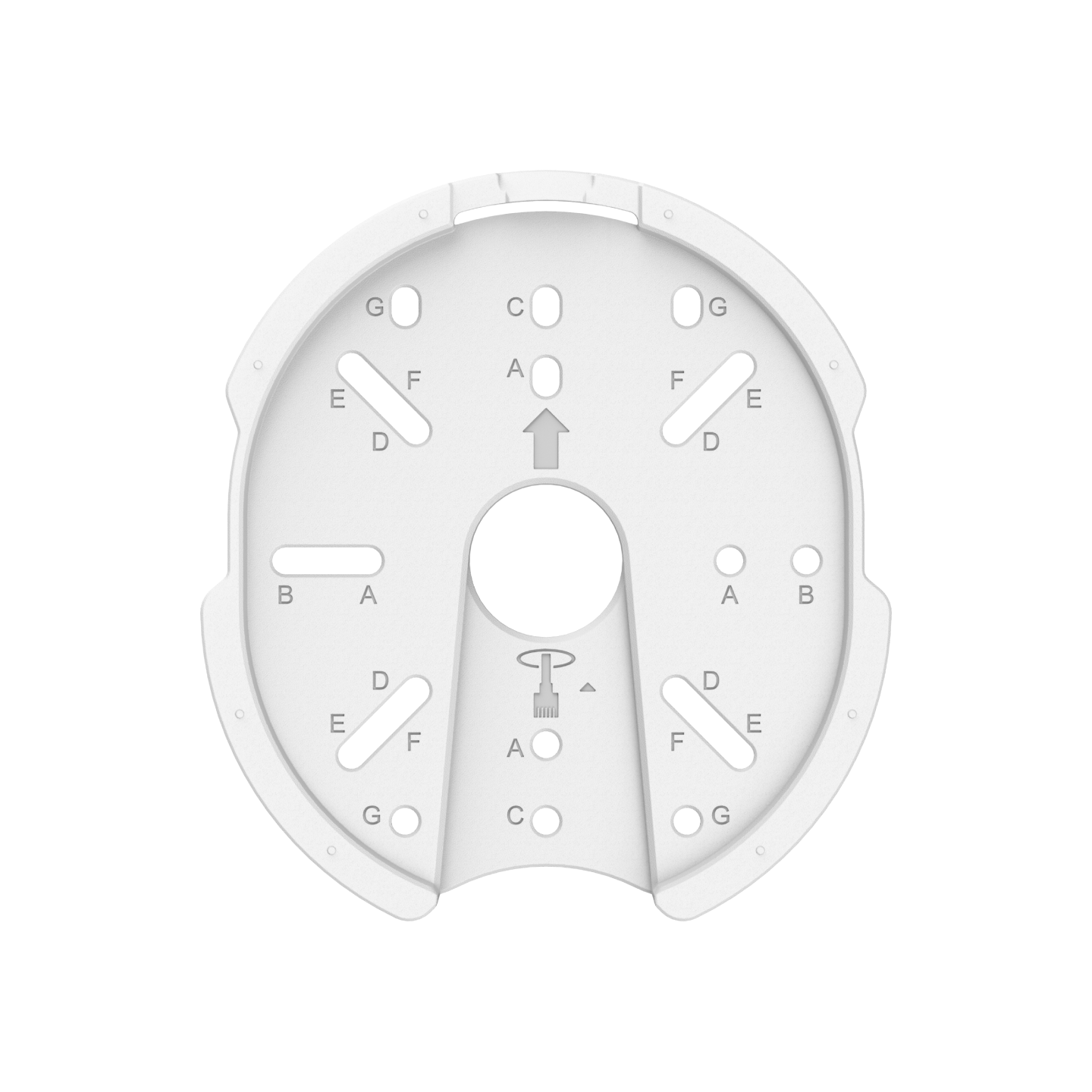

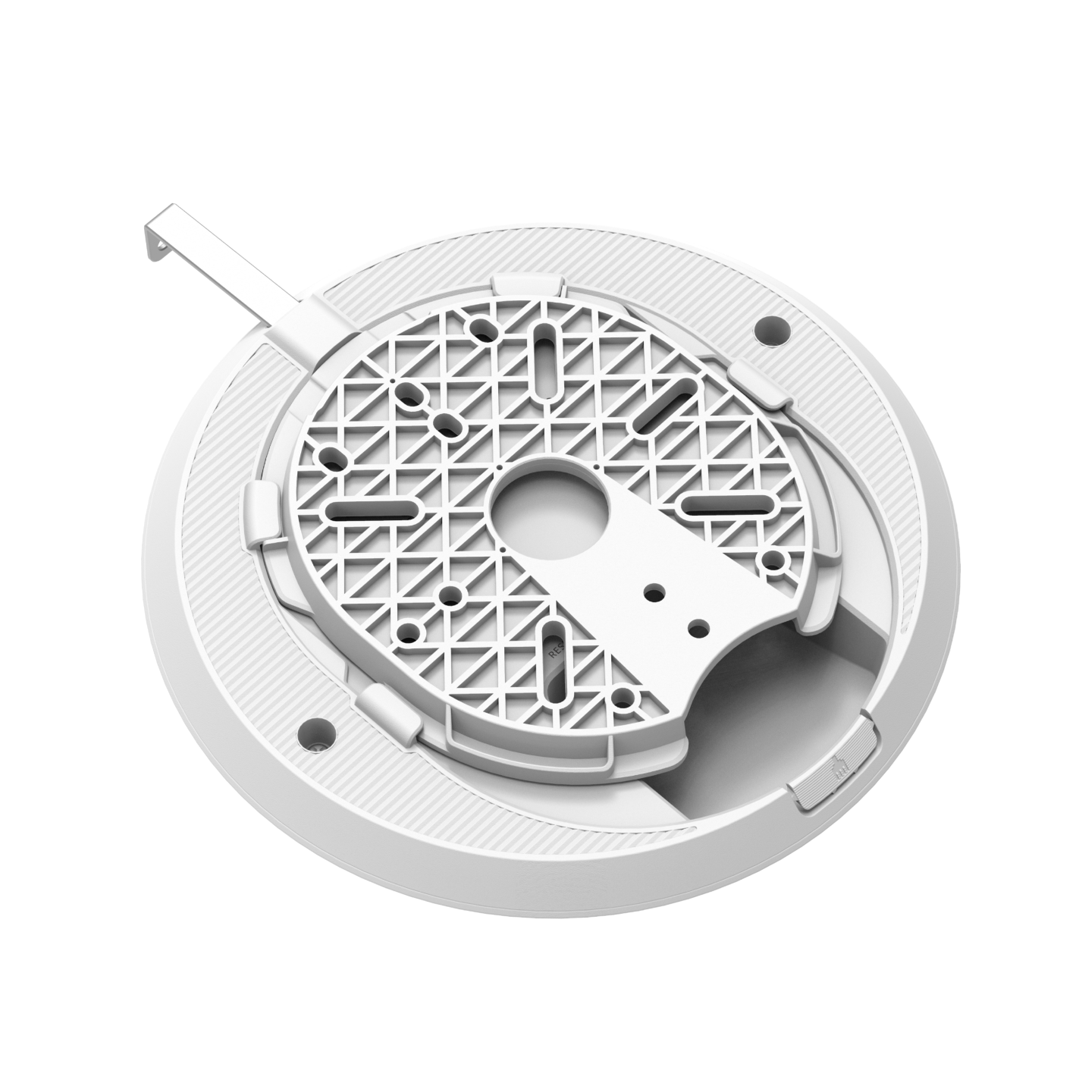

Easy Installation

Large guide groove ensures perfect alignment
Direct-push-in design

Product Type
Product Type	Ceiling AP

Hardware Specifications
Wi-Fi Radio
Radio design	Dual-radio
	4 spatial streams
	● 2.4 GHz: 2 x 2, MU-MIMO
	● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate	1774 Mbps

6 GHz wireless data rate	No

5 GHz wireless data rate	1201 Mbps

2.4 GHz wireless data rate	573 Mbps
Antenna
Antenna	2.4 GHz: 2 built-in omnidirectional antennas
	5 GHz: 3 built-in omnidirectional antennas

Dimensions and Weight
Product dimensions (diameter x height)	Ø175mm x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket)
Color	White

Weight	≤ 0.4 kg (0.88 lbs) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports	1

Power Supply and Consumption
Power supply	● DC power adapter
	● PoE/PoE+
	Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply	Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector	Outer diameter: 5.5 mm (0.22 in.)
	Inner diameter: 2.1 mm (0.08 in.)
	Length: 10 mm (0.39 in.)
PoE budget	No
Maximum power consumption	12.95 W
Environment and Reliability
Operating temperature	0°C to 40°C (32°F to 104°F)

Mounting options	Ceiling/Wall
IP rating	IP41
Software Specifications
WLAN
Maximum number of associated wireless clients	64 (2.4 GHz)
	256 (5 GHz)
	256 (2.4 GHz and 5 GHz enabled)

Maximum number of devices that can be managed	300
IP Service
IPv6	Yes
