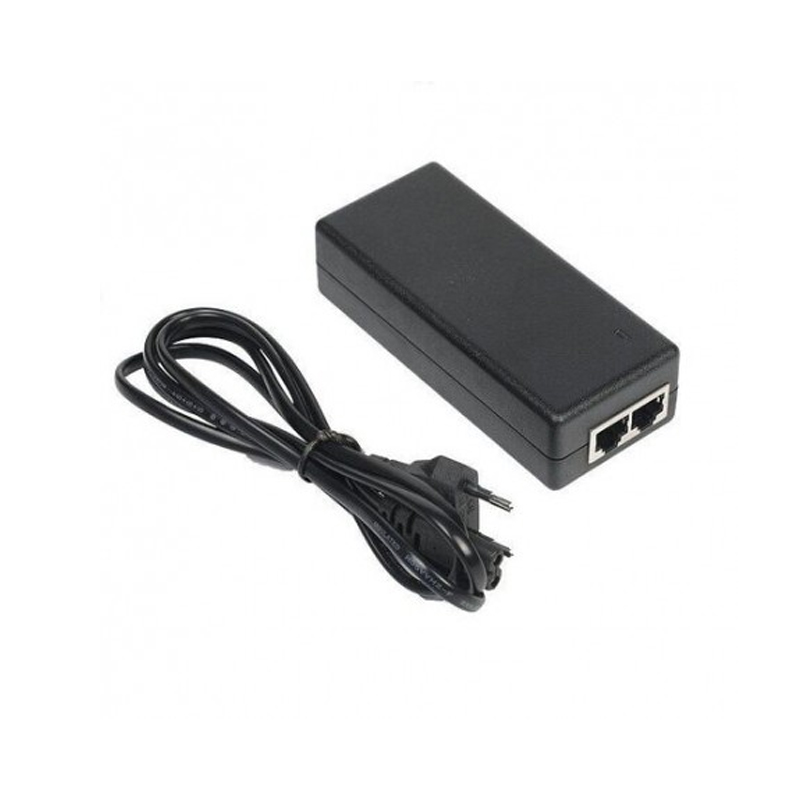

WI-TEK 1000Mbps PoE Injector WI-POE51-48V

Interface	1 10/1000Mbps PoE RJ45 Port
Interface	1 10/1000Mbps Ethernet Port
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
	EIA/TIA-568 100Ω STP (Max 100m)
	100BASE-TX: UTP category 5, 5e cable (Max 100m)
	EIA/TIA-568 100Ω STP (Max 100m)
Power Supply	AC IN 100-240V
Data In/Out	1 x 10/1000Mbps Data In
Power In/Out Port	1 x 802.3af/at PoE Out
PoE PIN	4/5(+) 7/8(-) or 1/2(+) 3/6(-)
PoE Consumption	48V 24W
LED Indicator	PWR-Power
DIP Switch	N/A
Fan Quantity	Fanless
Transmission Method	Store-And-Forward
Protection Level	6kV Lightning protection
Protection Level	6kV ESD Contact discharge
Advanced Functions	Mac Address Auto-Learning And Auto-Aging
	Store and forward
	IEEE 802.3x flow control for
	Full-duplex Mode
	Backpressure for Half-duplex Mode
OTHERS
Certification	CE, FCC, RoHS
Package Dimension	205×134×47mm
DeviceDimension	113×48×30mm
Gross Weight	0.3kg
Net Weight	0.12kg
Package Contents	1 x PoE Switch
Warranty	3 Years
