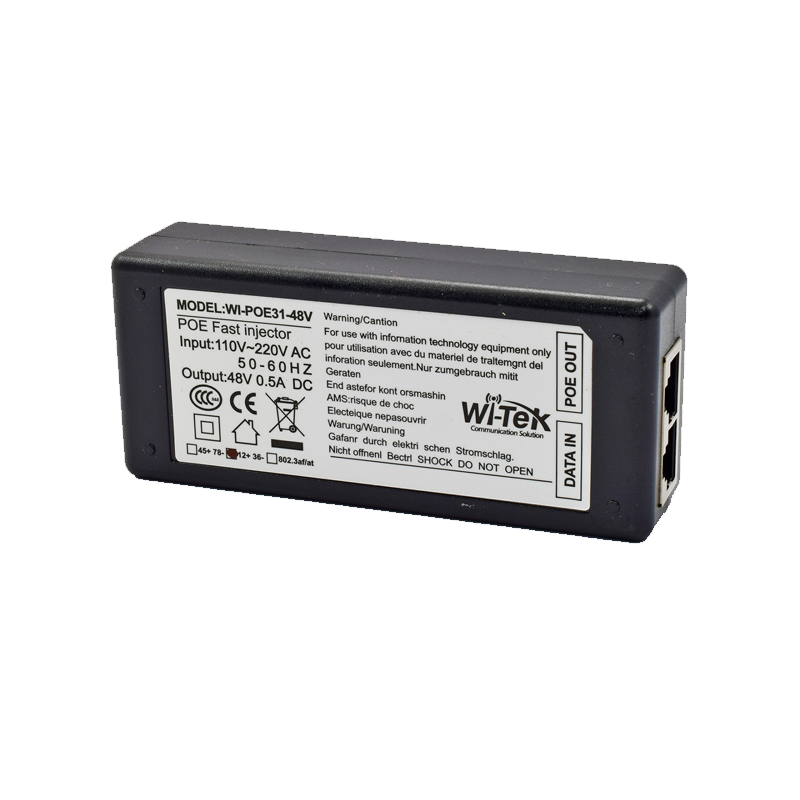

WI-TEK 100Mbps PoE Injector WI-POE31-48V

● 1*10/100Mbps PoE output port with 802.3af/at 24W
● 1*10/100Mbps Ethernet input port
● AC IN 100-240V
● Plug and play, no configuration

Rs.  1,500


WI-TEK 100Mbps PoE Injector WI-POE31-48V

HARDWARE FEATURES

 WI-POE31-48V
Interface 1 10/100Mbps PoERJ45 Port
1 10/100Mbps Ethernet Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
Power Supply AC IN 100-240V
Data In/Out 1 x 10/100Mbps Data In
Power In/Out Port 1 x 802.3af/at PoE Out
PoE PIN 4/5(+) 7/8(-) or 1/2(+) 3/6(-)
PoE Consumption 48V 24W
LED Indicator PWR-Power
DIP Switch N/A
Fan Quantity Fanless
Transmission Method Store-And-Forward
Protection Level 6kV Lightning protection
6kV ESD Contact discharge
Advanced Functions Mac Address Auto-Learning And Auto-Aging
Store and forward
IEEE 802.3x  flow control for
Full-duplex Mode
Backpressure for Half-duplex Mode
OTHERS
Certification CE, FCC, RoHS
Package Dimension 205×134×47mm
DeviceDimension 113×48×30mm
Gross Weight 0.3kg
Net Weight 0.12kg
Warranty 3 Years
