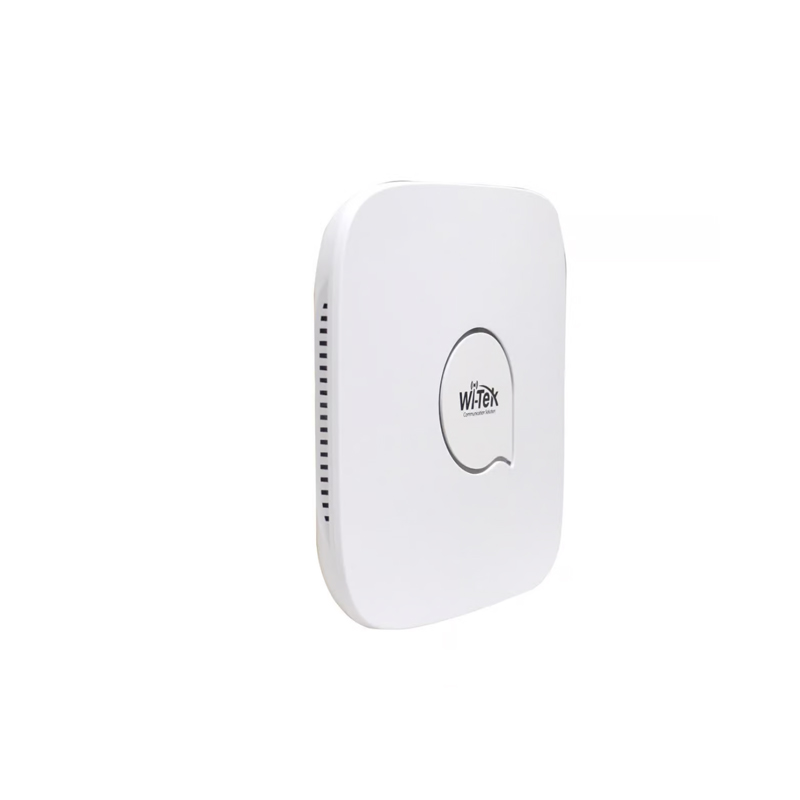

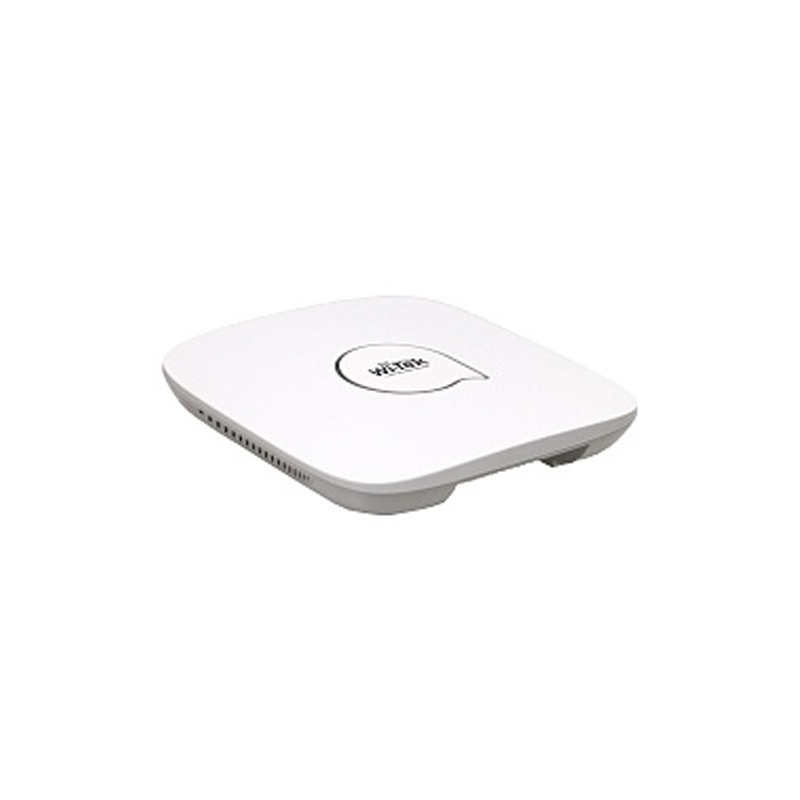

WI-TEK 1200Mbps Indoor Ceiling Cloud Access Point WI-AP217

* 802.11AC 2.4G&5.8G 1200M Indoor Wireless Ceiling AP
* 11AC Wave2 2.4GHz 300Mbps+5.8Ghz 887Mbps
* Atheros chipset 128MB DDR2, 16MB Flash, 500mW High-Power,access 150users
* 4*5dB inside antenna
* 48V PoE Support,2 x Gigabit Port, not include PoE adapter
* Support hardware controller managed
* Support QVLAN+SSID, Portal,AC controller Managed and  Cloud Managed

Rs.  14,500


WI-TEK 1200Mbps Indoor Ceiling Cloud Access Point WI-AP217

Wi-Tek WI-AP217 is a high power access point, Wi-Fi 5 standard (802.11AC Wave2) up to 1200 Mbps in dual bands 5GHz and 2.4GHz , with PoE support. The recommended number of subscribers for this model is no more than 150. Throughput over the radio channel is up to 1200 Mbps. The device is equipped with two ports with bandwidth up to 1000 Mbps.

Main features of the WI-AP217 access point:

  • Speeds up to 300 Mbps on 2.4 GHz and up to 900 Mbps on 5 GHz
  • MU-MIMO feature provides faster response for every connected device
  • Seamless roaming
  • Centralized Management - Cloud Controller
  • Centralized management - hardware controller
  • Various authentication methods
  • PoE support IEEE802.3af / 12V 1A (power supply not included)
  • 2 LAN ports
  • Ceiling/Wall Mount



CPU   Qualcomm QCA9563
Memory 128MB SDRAM 16MB Flash
Interfaces  2X10/100/1000BASE-TX
Nutrition   802.3af PoE / 12 volt 1A (power supply not included)
Power consumption up to 10W.
Antenna  2.4GHz: OMNI antenna 2*5dBi
5GHz: OMNI antenna 2*5dBi
Wireless standards 802.11a/b/g/n/ac wave 2
Operating modes FIT AP, router
Frequencies 2400 - 2483.5 MHz
5150 - 5350 MHz
5650 - 5850 MHz
Transmitter output power 20dBm(100mW)*
Dimensions  188mm*188mm*35mm
Warranty 3 Years
Temperature and Humidity Operating temperature： 0℃～40℃
Storage Temperature： -40℃～70℃
Operating Humidity: 10%～95% RH non-condensing
Storage humidity: 5%～95% RH non-condensing
Functions Multiple SSIDs
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Band Steering
Load Balance Schedule
Warranty 3 Years
