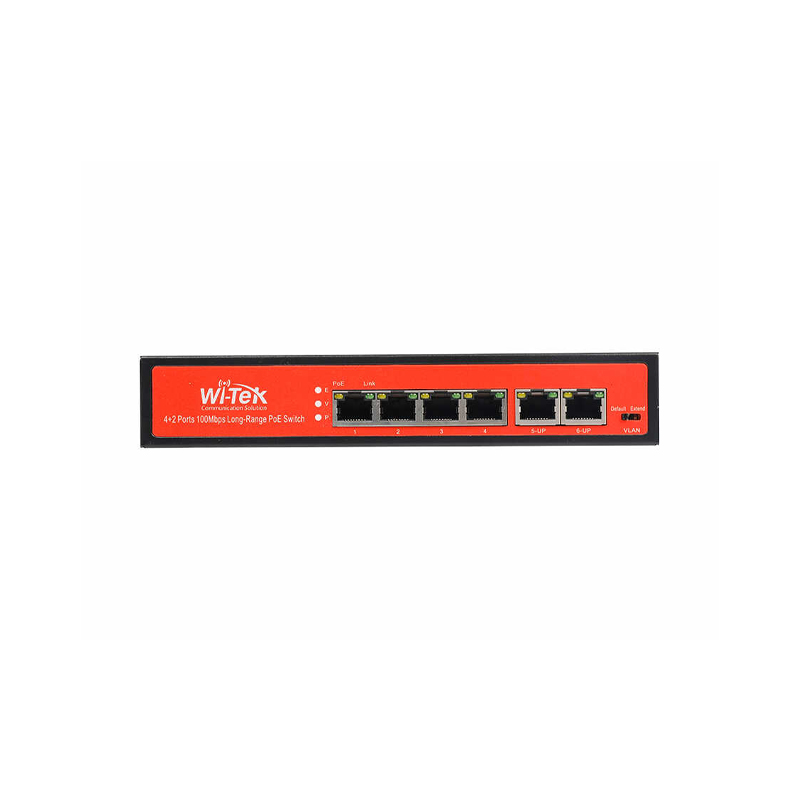

WI-TEK 4FE+2FE uplink 250m LR switch WI-PS205V2

  • 4FE+2FE uplink 250M Long Range PoE Switch with 4PoE Port
  • Supports smart watchdog function to monitor compliant PD
  • Port 1 supports Hi-PoE power up to 60W fit IEEE 802.3bt compliant PDs
  • Port 2-4 supports PoE 30W fit IEEE 802.3af/at compliant PDs
  • Internal power adapter supply 65W
  • Support 250meters Long range PoE Transmit
  • 2K entry MAC address table  with auto-learning and auto-aging
  • Realtek Switch Chipset+TI PoE Chipset guarantee stable performance

Rs.  14,500


WI-TEK 4FE+2FE uplink 250m LR switch WI-PS205V2

Unmanaged switch WI-PS205H v2 with PoE (Power over Ethernet) function is used in IP telephony, IP video surveillance, Wi-Fi installations. No specialized knowledge is required to install, configure, and maintain the switch, making it easy to use.
Power supply built-in.

The switch is equipped with 6 100Base-TX ports, 4 of which support 802.3af/at (PoE, PoE+).

The switch supports CCTV operation mode and Watchdog function.

The WI-PS205H v2 unmanaged switch of the updated version supports the Watchdog function - automatically detecting hung IP cameras or other equipment and restarting the PoE power on the ports. The switch is equipped with an additional mode switch Default

Interface 4 100M RJ45 PoE Ports
2 10/100Mbps RJ45 Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply AC 100~240V 50/60HZ
Standard 802.3 af/at/bt compliant PoE
PoE Ports Port 1-4
PoE Power Budget 65W
Hi-PoE 60W Port 1
LED Indicator PoE/Link/Power
DIP Switch Default/VLAN/Extend
250m Yes
Port VLAN Yes
PoE Watchdog Yes
Mac Address Table 2k
Packet Forwarding Rate 0.89Mpps
Jumbo Frame 2kB
Protection Level Lightning protection 6kV
6kV ESD Contact discharge
Package Dimension 270×220×605 mm
Switch Dimension 190×130×35 mm
Gross Weight 1kg
Net Weight 0.6kg
Package Content 1× Switch
1× Power Cord
1×Rackmount Kit
1× Quick Installation Guide
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Watchdog Function
Mac Address Auto-Learning
Auto-Aging Store and forward
IEEE 802.3x flflow control for Full-duplex Mode
Backpressure for Half-duplex Mode
OTHERS
Certification  CE, FCC, RoHS
Environment Operating Temperature: -10℃–55℃ (14℉–131℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Warranty 3 Years
