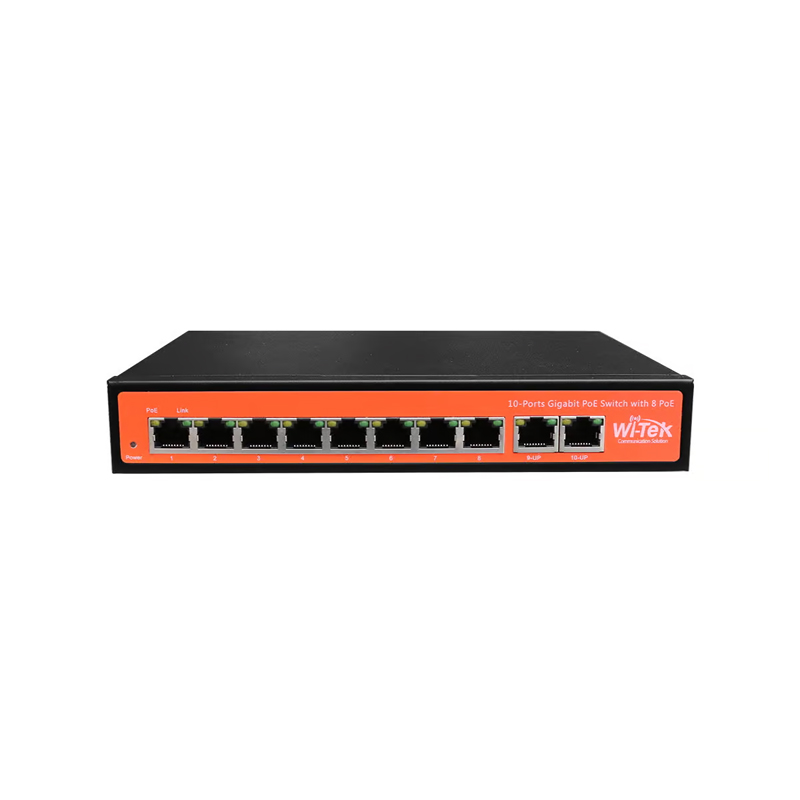

WI-TEK 8-Port Gigabit Unmanaged POE Switch WI-PS308G

  • 8GE+2GE Ports PoE Switch with 8Port PoE
  • Supports PoE power up to 30W for each port
  • Supports PoE IEEE 802.3af/at compliant PDs
  • Support CCTV mode(250m PoE+Port VLAN)
  • Internal power adapter supply 65W
  • 4K entry MAC address table  with auto-learning and auto-aging
  • Realtek Switch Chipset guarantee stable performance
  • Supports smart watchdog function to monitor compliant PD

Rs.  10,000


WI-TEK 8-Port Gigabit Unmanaged POE Switch WI-PS308G

WI-TEK Unmanaged Gigabit WI-PS308G switch with PoE (Power over Ethernet) function is designed for installation in modern high-speed networks of IP telephony, IP-video surveillance, and WiFi. When installing, configuring, and maintaining the switch, specialized knowledge is not required, which facilitates its use.

The switch is equipped with  8 ports 1000Base-T supporting the standard 802.3af / at (PoE, PoE +) 120 W and 2 ports 1000Base-T.

Features:

  • 10 Port Gigabit Unmanaged Switch
  • 8 – GB Port PoE { 10/100/1000 Mbps)
  • 2 – GB Uplink Port { 10/100/1000 Mbps}
  • PoE Ports 1-8 Standard: 802.3 af/at
  • All 10 ports auto-MDI/MDIX
  • Data rates up to 2000Mbps
  • Plug and Play hassle-free installation
Interfaces       10 ports 10/100/1000M
Physical environments  10BASE-T: Category 3, 4, 5 UTP cable (max. 100m)
100BASE-TX/1000Base-T: Category 5, 5e, 6 or higher UTP cable (max. 100m)
1000Base-SX:62.5um/50um MMF（2m~550m)
1000Base-LX:62.5µm/50µm MM（2m~550m) or 10µm SM (2m~5000m)
Cooling passive
Power consumption  120W max. (with connected POE devices)
  Input voltage AC 110~240V 50/60Hz
Internal power supply

PoE ports (RJ45) PoE ports 2 to 8 (802.3 af/at standard) up to 30W per port
PoE port 1 (802.3af/at/bt standard) up to 60W per port
Bandwidth  20Gbps
mac address table 4K
Dimensions 210*150*30mm
Temperature and Humidity Operating temperature： -10℃～55℃
Storage Temperature： -40℃～70℃
Operating Humidity: 10%～90% RH non-condensing
Storage humidity: 5%～90% RH non-condensing
Warranty 3 years
