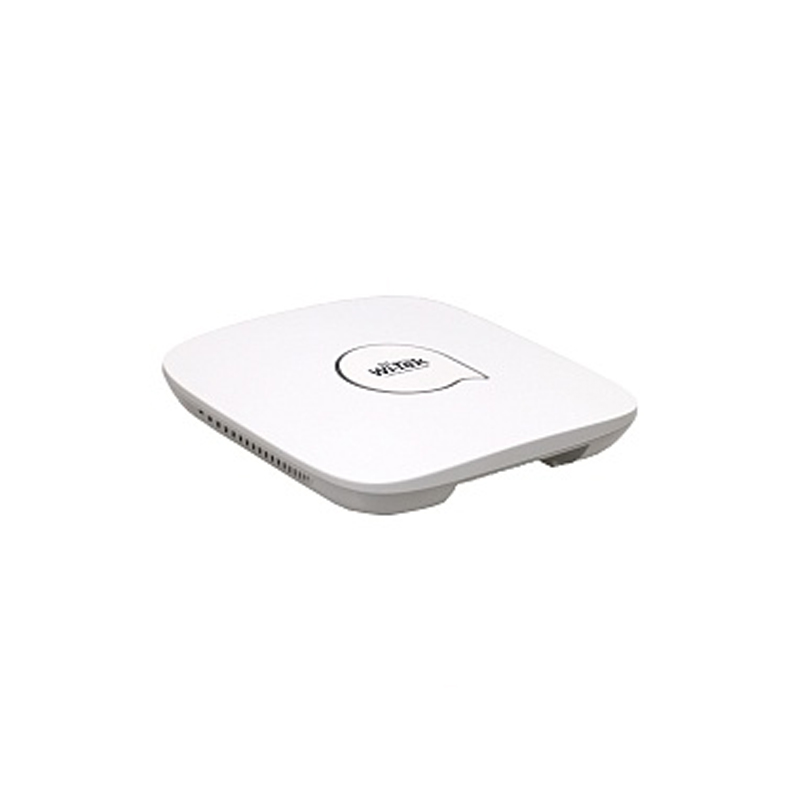

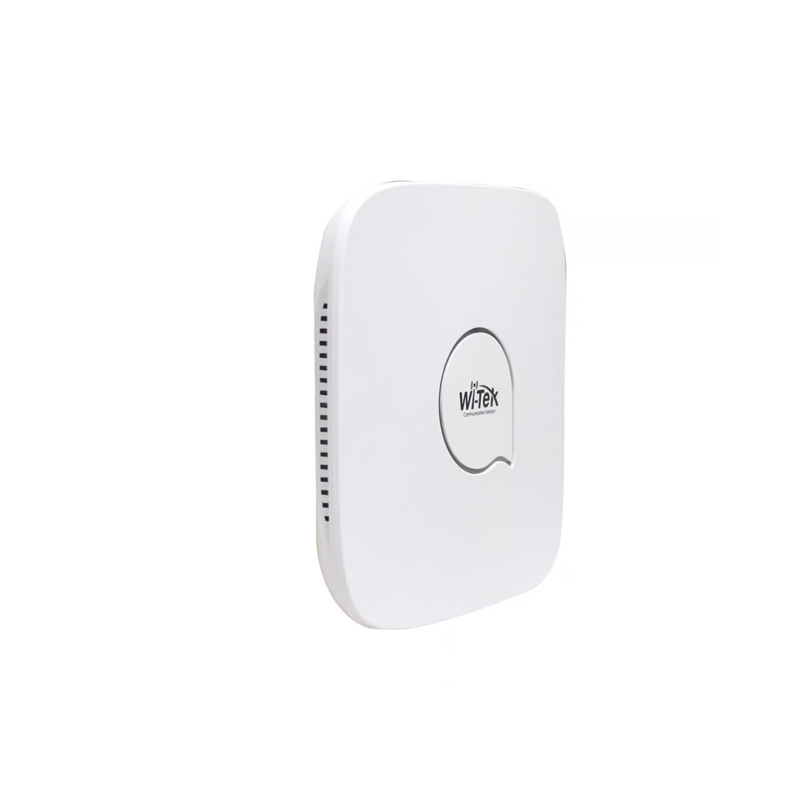

Wi-TEK Dual Band 750Mbps Ceiling Access Point WI-AP215

  • 02.11AC 2.4G&5.8G 750M Indoor Wireless Ceiling AP
  • 11AC 2.4GHz 300Mbps+5.8Ghz 443Mbps
  • Atheros chipset 128MB DDR2, 16MB Flash, 500mW High-Power,access 90users
  • 3*5dB inside antenna
  • 48V PoE Support,2 x 100Mbps Ethernet port, not include PoE adapter
  • Support hardware controller managed
  • Support QVLAN+SSID, Portal,AC controller Managed and  Cloud Managed

Rs.  10,500


Wi-TEK Dual Band 750 Mbps Ceiling Access Point WI-AP215

Wi-Tek WI-AP215 is a high power access point, Wi-Fi 5 standard (802.11AC) up to 750 Mbps in dual bands 5GHz and 2.4GHz, with PoE support. The device supports 90 wireless clients.

The WI-AP215 access point can work as a standalone device, as well as logically combine into one network with many devices controlled by a hardware controller or a free cloud service.
The presence of a second LAN port in the access point allows you to save on the deployment of network infrastructure.

Key features of the WI-AP215 access point:

  • Speeds up to 300 Mbps on 2.4 GHz and up to 450 Mbps on 5 GHz
  • Seamless roaming
  • Various authentication methods
  • Power supply PoE IEEE802.3af / 12 volt 1A (power supply not included)
  • 2 LAN ports
  • Ceiling/Wall Mount
CPU   Qualcomm QCA9531+AR9887
Memory 128MB SDRAM 16MB Flash
Interfaces  2X10/100BASE-TX
Nutrition   802.3af PoE 802.3af PoE / 12 volt 1A (power supply not included)
Power consumption up to 8W.
Antenna  2.4GHz: OMNI antenna 2*5dBi
5GHz: OMNI antenna 1*5dBi
Wireless standards 802.11a/b/g/n/ac
Operating modes FIT AP, router
Frequencies 2400 - 2483.5 MHz
5150 - 5350 MHz
5650 - 5850 MHz
Transmitter output power 20dBm(100mW)*
Dimensions  188mm*188mm*35mm
  Operating temperature： 0℃～40℃
Storage temperature： -40℃～70℃
Operating Humidity: 10%～95% RH non-condensing
Storage humidity: 5%～95% RH non-condensing
Functions Multiple SSIDs
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Band Steering
Load Balance Schedule
Wireless Statistics based on SSID/AP/Client
Safety   Captive Portal Authentication Access Control Wireless
802.1x
Radius
Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Control  Web, cloud, hardware controller
Warranty 3 Years
