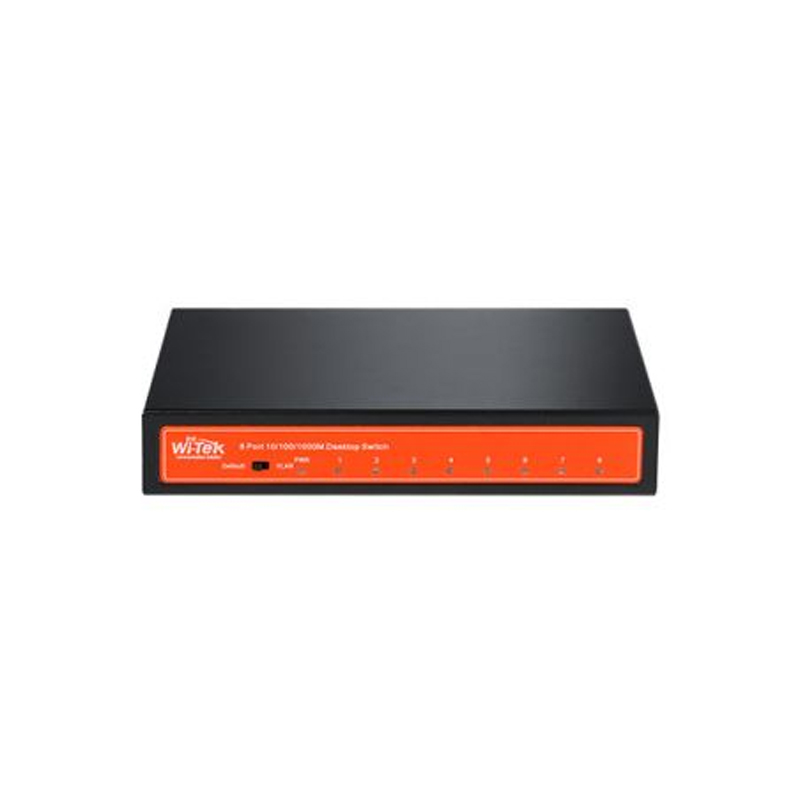

WI-TEK Unmanaged Gigabit Switch WI-SG108

The unmanaged gigabit switch WI-SG108 is used in small installations of IP telephony, IP video surveillance, Wi-Fi. When installing, setting up and servicing the switch, specialized knowledge is not required, which facilitates its use.

The switch is equipped with 8 ports 1000Base-T and supports VLAN mode

Rs.  4,500


WI-TEK Unmanaged Gigabit Switch WI-SG108


The WI-SG108 switch is equipped with an additional Default / VLAN operating mode switch
Default mode — normal operation.
Mode Vlan — port insulation mode; allows you to isolate the traffic of connected devices at a physical level, which limits their communication at the 2nd and 3rd levels, and guarantees the safety of content transfer.
The switch is made in a compact metal case.

Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Interface 8 100/1000Mbps RJ45 Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
DIP Switch Default/VLAN
Fan Quantity Fanless
Exchange Capacity 16G
Packet Forwarding Rate    11.9Mpps
Mac Address Table 4K
Power Adapter DC 5-15V
Packet Buffer Memory 1.5Mb
Jumbo Frame 10240 Bytes
Port VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Dimension 210×170×43 mm
Switch Dimension 140×78×25 mm
Gross Weight 0.49kg
Net Weight 0.28kg
Package Contents 1 × Gigabit Switch
1 × Power Adapter
1 × Quick Installation Guide
Working Temperature -10℃～55℃
Storage Temperature -40℃～70℃
Working Humidity 10%～90% RH
non-condensing
Storage Humidity 5%～90% RH non-condensing
Storage Humidity 5%～90% RH non-condensing
Warranty 3 Years
